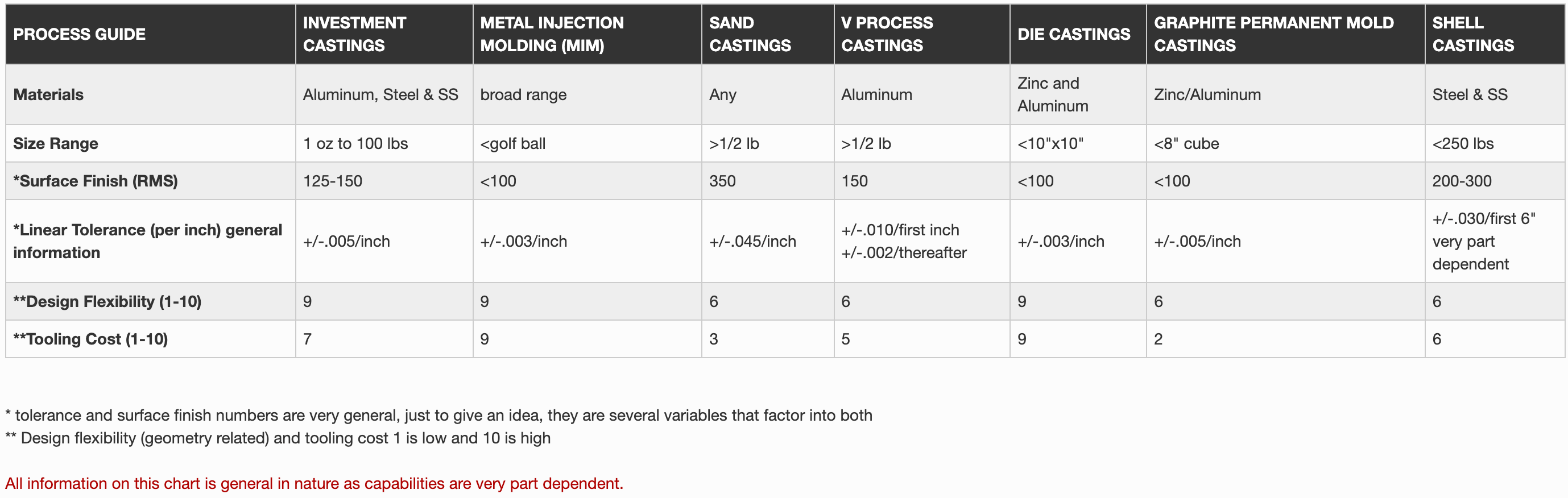

PROCESS GUIDE INVESTMENT CASTINGS METAL INJECTION MOLDING (MIM) SAND CASTINGS V PROCESS CASTINGS DIE CASTINGS GRAPHITE PERMANENT MOLD CASTINGS   SHELL CASTINGS
Materials Aluminum, Steel & SS broad range Any Aluminum Zinc and Aluminum Zinc/Aluminum Steel & SS
Size Range 1 oz to 100 lbs <golf ball >1/2 lb >1/2 lb <10"x10" <8" cube <250 lbs
*Surface Finish (RMS) 125-150 <100 350 150 <100 <100 200-300
*Linear Tolerance (per inch) general information +/-.005/inch +/-.003/inch +/-.045/inch +/-.010/first inch
+/-.002/thereafter
+/-.003/inch +/-.005/inch +/-.030/first 6"
very part dependent
**Design Flexibility (1-10) 9 9 6 6 9 6 6
**Tooling Cost (1-10) 7 9 3 5 9 2 6


* tolerance and surface finish numbers are very general, just to give an idea, they are several variables that factor into both
** Design flexibility (geometry related) and tooling cost 1 is low and 10 is high

All information on this chart is general in nature as capabilities are very part dependent.
